Perma-Lateral™

Rehabilitates Pipes From:

2″ to 8″

In Diameter

Continuous Lining Left To Right Sewer Repair

Continuous
Lengths Up To:

2” to 4” lining

120FT +

5” to 8” lining

600FT +

This no-dig trenchless sewer repair process simultaneously rehabilitates the connection and the lateral service pipe for up to 600 feet in length.

Made In The USA Perma Liner Sewer Repair Systems

Sewer repair is a breeze with Perma-Lateral™

The Perma-Lateral™ System is designed for 2″ – 8″ pipe diameters. The system can be installed through clean-outs or open end pipes. Only one access point is required. The liner can be ambient cured in 3 hours or steam cured in as little as 20 minutes. 2″ to 4″ diameter pipes can be rehabilitated up to 120FT+ in length, while 5″ to 8″ diameter pipes can be rehabilitated up to 600FT + in length. This is best selling small diameter pipeline rehabilitation system in North America!

Damaged roots in pipe
the soil for planting isolated on white background
Lateral Sewer Repair Inverter

The Original Lateral Lining System

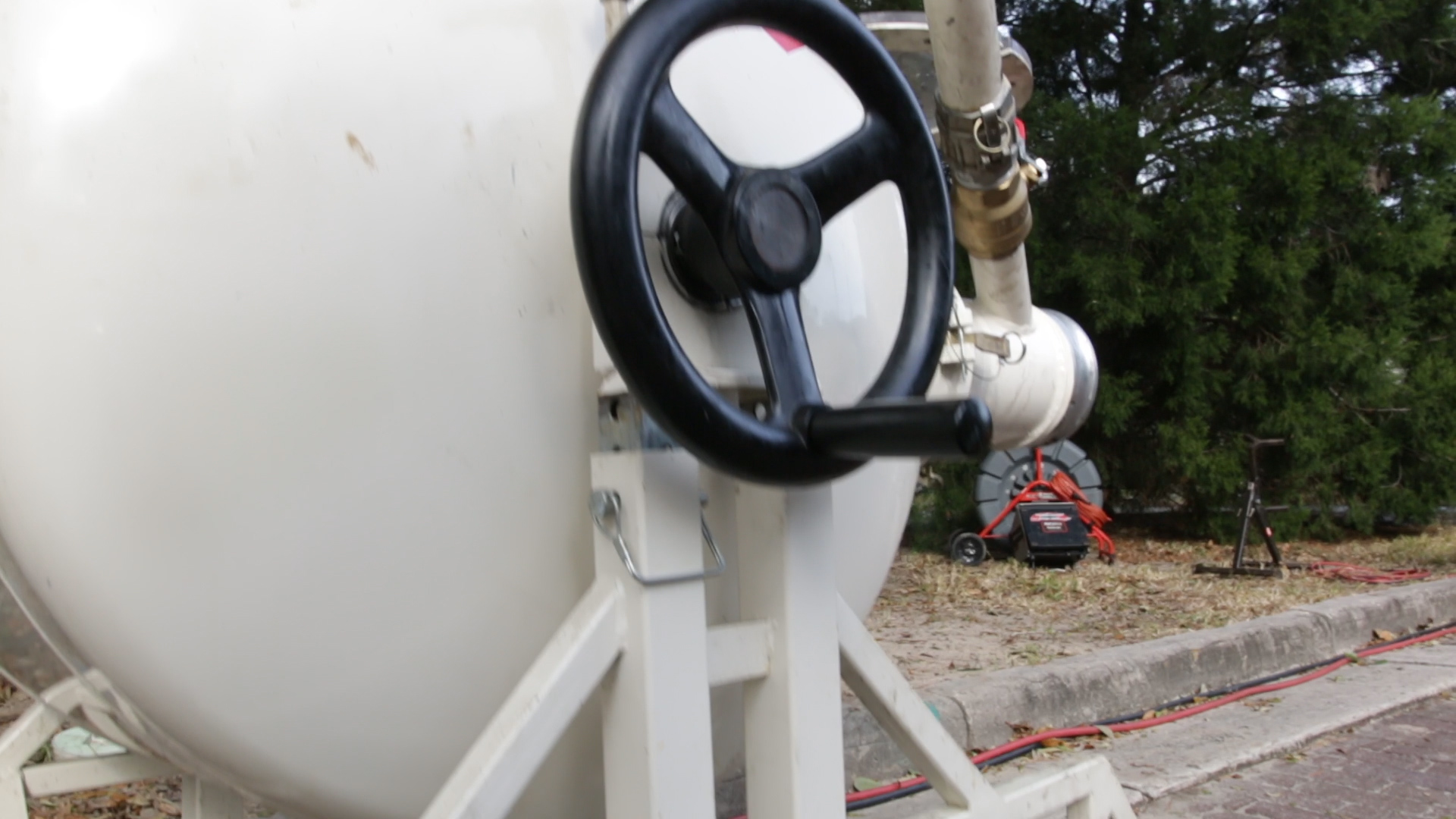

The Perma-Lateral™ inversion unit does all the work. The installer calibrates the correct inversion pressure while the liner inverts itself through the existing host pipe and the Certified Installer controls the speed to ensure proper installation. Once the liner is inverted and holding pressure, the Installer attaches a special cap to hold pressure during the curing time. The Perma-Lateral™ inversion unit is released and used for the next installation. The liner holding pressure is maintained using a portable air tank.

USA Made Sewer Repair

Proudly Made In The U.S.A.

NSF Certified Compliant Sewer Pipe Repair System
UPC-2023-LOGO
ASTM Compliant Sewer Pipe Repair System

This patented sewer pipe repair system is ASTM F2561 Compliant.
Click here to visit the ASTM website

Perma-Lateral Pipe Repair System

Features:

  • 2” to 4” lining, 120FT +
  • 5” to 8” lining, 600FT +
  • 3” to 4” and 4” to 6” pipe flow transitions
  • Styrene-Free Resin
  • Any Pipe material: Cast, Clay, PVC, etc.
  • Minimum lifespan 50-years per ASTM F 1216 Third Party Testing
  • UPC Listing (Uniform Plumbing Code)
  • ICC-ES PMG Listing
  • IRC Listing (International Residential Code)
  • IPC Listing (International Plumbing Code)
  • IAPMO Classified Marking
  • NSF / ANSI Standard 14 Certification and Q.A. Program
  • Third party tested and certified Environmentally Safe
  • Third party tested and certified Odorless Materials

Components of The System

PERMA-LATERAL™ PIVOTING INVERTER
PERMA-LATERAL™ PIVOTING INVERTER

Allows the installer unlimited angles for optimal inversion head placement.

PERMA-LATERAL™ PATENTED CAMERA INSPECTION PORT
PERMA-LATERAL™ PATENTED CAMERA INSPECTION PORT

Allows a lateral push camera to be inserted inside the clear calibration tube, providing a visual certification of the liner placement prior to curing.

PERMA-LATERAL™ PATENTED DIRECTIONAL SHOES
PERMA-LATERAL™ PATENTED DIRECTIONAL SHOES

Allows the installer to direct the liner and calibration tube upstream or downstream, while lining through a cleanout.

PERMA-LATERAL™ PATENTED SCRIM REINFORCED INVERSION LINER
PERMA-LATERAL™ PATENTED SCRIM REINFORCED INVERSION LINER

The Perma-Lateral™ Scrim reinforcement eliminates stretch in the liner while inverting. There is no chance for the liner stretching and protruding past the termination point. This stretch-resistant lining material is for use with the #1 selling small diameter pipe lining system.

Photos of Perma-Lateral™ In Action

Small Diameter Pipe Repair Solutions Made in the U.S.A.

Ambient Cure Resin

The Perma-Lateral™ ambient cure resin is formulated to meet the installer’s needs. Perma-Liner™ has formulated its resin for all working temperatures. The Perma-Lateral™ epoxy resin will provide you plenty of working time with a 3 hour cure time. The epoxy is pre-formulated and shipped to you in 5 gallon containers. The formulation is a 2-part mix. You simply measure the quantity of resin needed and introduce it into the liner. There’s no waste of materials. This system is user friendly!

Do you have the secret weapon when it comes to pipe repairs?

Before you dig, call us!

A broken or failed sewer line does not mean you have to dig it up to repair it. We manufacture all of the equipment needed to repair underground pipelines without the need for excavation. Our sewer repair pipeline rehabilitation systems can handle pipes that range from 2 inches up to 48 inches in diameter. Experience the Perma-Liner™ difference today and save your road, yard, slab and your sanity!
