Innerseal™

Rehabilitates Pipes From:

8″ to 12″

In Diameter

Continuous Lining Left To Right Sewer Repair

Continuous
Lengths Up To:

6 Feet

In The Main

This no-dig trenchless sewer repair process simultaneously rehabilitates the connection and the lateral service pipe for up to 8 feet in length.

Made In The USA Perma Liner Sewer Repair Systems

A Real Game Changer

Innerseal™ by Perma-Liner ™ is the trenchless cured-in-place pipe system technology that has been used in collection systems throughout North America to repair the connection from the mainline while simultaneously renewing the lateral. InnerSeal™ the Sewer Repair System by Perma-Liner™ Industries is installed without the need for digging and replacing with new pipe. With the use of compression gaskets and with more than 50,000 successful installations, the technology has been proven to be the most effective, least disruptive, longest lasting, lateral rehabilitation system.

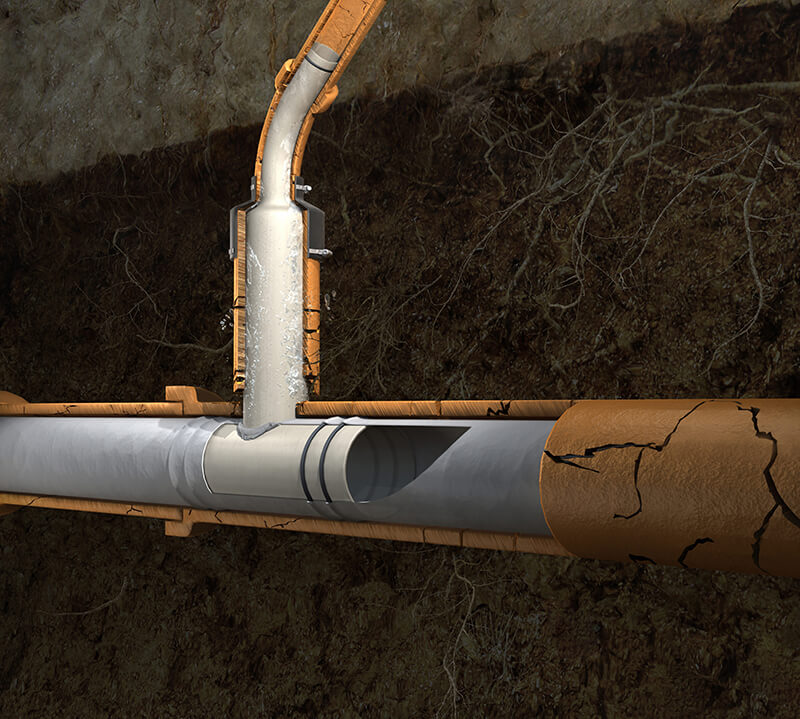

Two hydrophilic O-rings are positioned on each side of the lateral connection, embedded between the mainline tube and the main host pipe and expand 3 to 5 times their original size in the presence of water. The full-circle compression gaskets provide for a permanent, verifiable non-leaking connection and are compatible with all types of pipe and pipelining materials.

Innerseal System For Broken Sewer Pipelines
NSF Certified Compliant Sewer Pipe Repair System

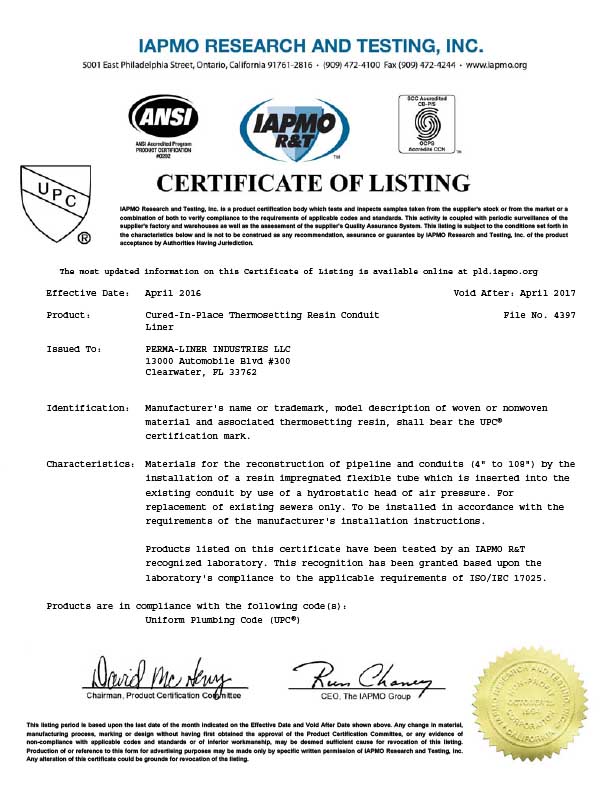

IAPMO Certified Compliant Sewer Pipe Repair System
ASTM Compliant Sewer Pipe Repair System

This patented sewer pipe repair system is ASTM F2561 Compliant.
Click here to visit the ASTM website

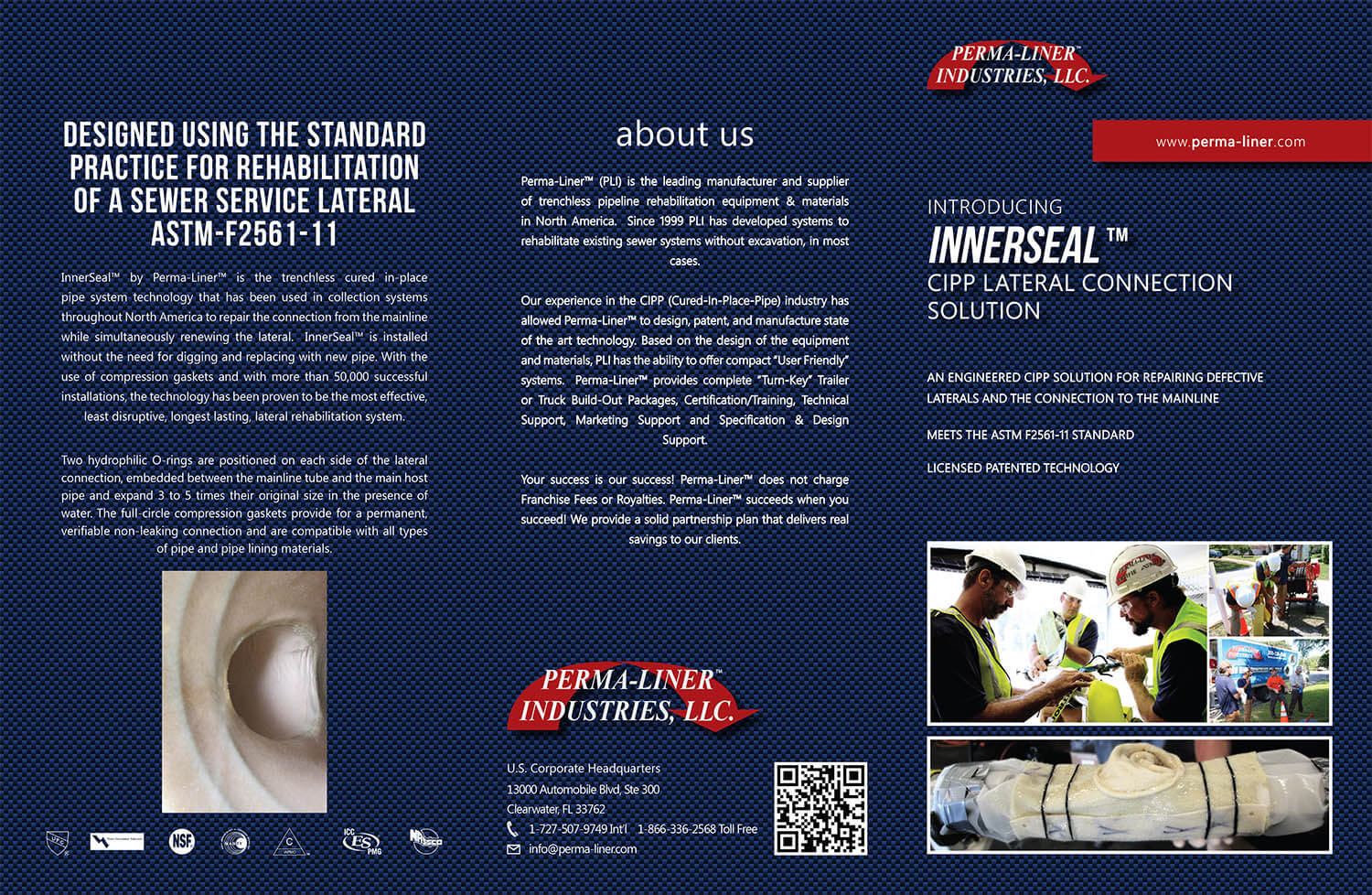

Innerseal Sewer Repair Brochure
innerseal-sewer-repair-brochure
innerseal-sewer-repair-brochure-3

Common Problems:

  • Manhole to manhole liners put in place with vinyl ester or polyester resins shrink over time
  • Shrunken liners have annular space allowing infiltration at the service connections.
  • Hammer taps have not been sealed at the man allowing infiltration.
  • Mainlines have settled breaking the connection at the service lateral.
  • Overcut mainlines services have compromised the connection.

Manhole to manhole liners put in place with vinyl ester or polyester resins shrink over time shrunken liners have annular space allowing infiltration at the service connections. Hammer taps have not been sealed at the man allowing infiltration. Mainlines have settled breaking the connection at the service lateral. Overcut mainlines services have compromised the connection.

The Ultimate Pipe Repair Solution

The InnerSeal™ system in the solution for common lateral to main connection problems. The InnerSeal™ is a one-piece, structural, new continuous Main to lateral CIPP that completely seals the connection. The mainline portion of InnerSeal™ material is permanently marked with a lateral Identification that includes specific information: physical address, the date of liner manufacture, and the name of the installation contractor.

The InnerSeal™ Turn-Key Trailer is a climate controlled workspace that features a vacuum pump for easy resin impregnation as well as a refrigeration unit for convenient onsite chemical storage.

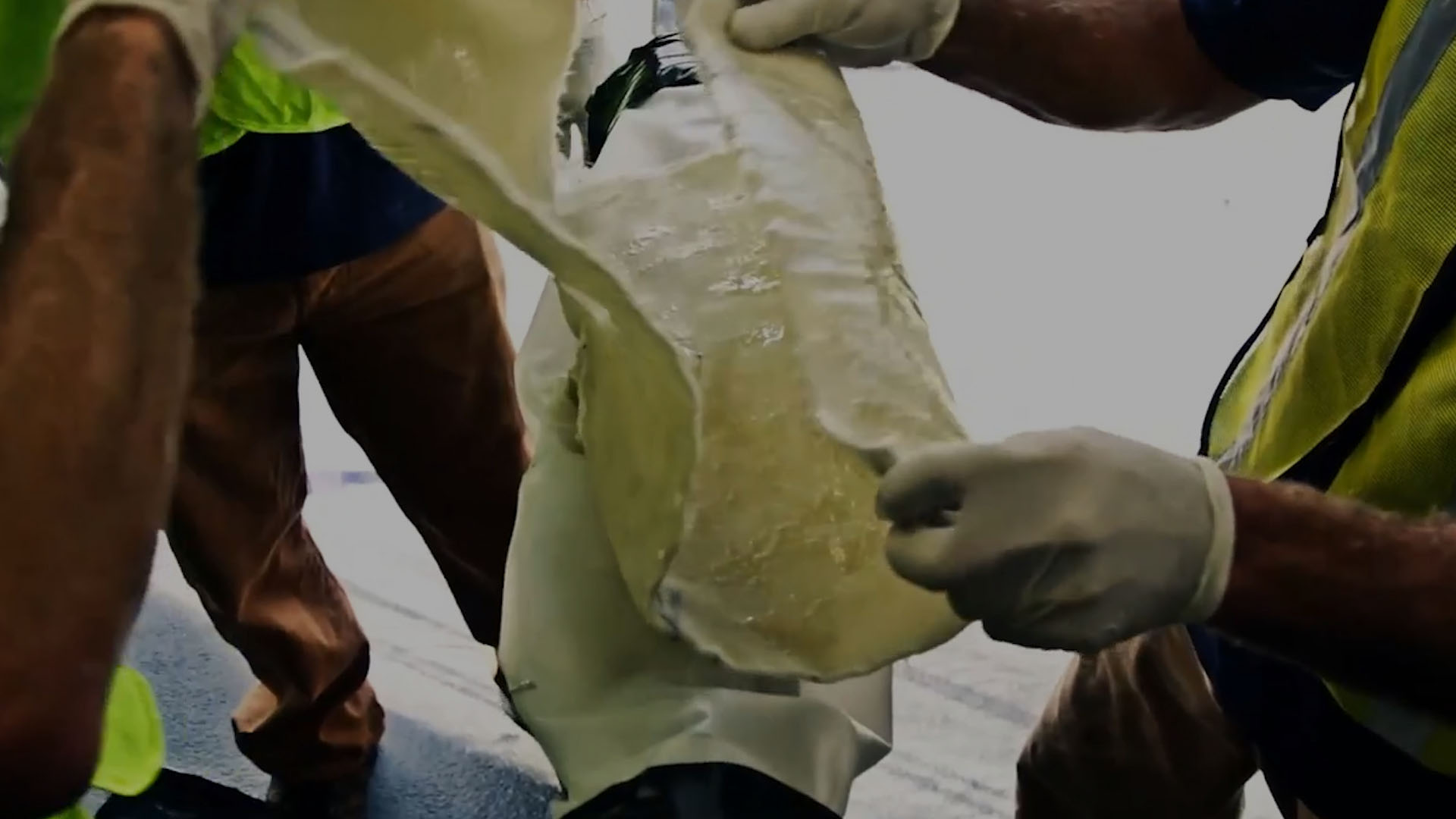

Liner material is vacuum impregnated with resin, loaded onto the skeleton and the hydrophilic O-Rings are attached around the termination of the lateral liner.

The InnerSeal™ positioning robot, skeleton and train Assembly is lowered into the main though the manhole.

The operator’s room, which is also climate controlled, operates the robotic positioning of the InnerSeal™ and also allows observation of the lateral inversion.

Innerseal Broken Sewer Pipe Repair System
Innerseal Broken Sewer Pipe Repair System
Innerseal Broken Sewer Pipe Repair System
Innerseal Broken Sewer Pipe Repair System
Innerseal Broken Sewer Pipe Repair System

A Complete Seal: Innerseal™

Since both the main and lateral are tubular, everyday engineering design calculation are applicable using flexural modulus, flexural strength, liner thickness, soil modulus, depth and other commonly used design factors. The InnerSeal ™ uses preformed hydrophilic rubber O-rings embedded between the host pipe and the liner to provide a permanent and verifiable non-leaking connection. This compression gasket seal is compatible with all types of piping including polyethylene and olefin-based coatings that are common Manhole to Manhole CIPP linings.

Before and After Innerseal™ Pipe Repair System Installed
Innerseal-2016-NSF-Facility
Innerseal-2016-NSF-Product

Prevent against cuts and bruises...

Explore our new manhole edge protectors

  • High-density ABS plastic
  • Color fade built into the plastic
  • Temp -40 to 180F with no deflection
  • Safety orange identifying the site
  • Protects camera and jetter lines
  • Eliminate Top Edge Roller and top side tiger tail
  • Thermal protection
  • Helps prevent against cuts and bruises to personnel going in and out of the manhole
Manhole Edge Protector

Do you have the secret weapon when it comes to pipe repairs?

Before you dig, call us!

A broken or failed sewer line does not mean you have to dig it up to repair it. We manufacture all of the equipment needed to repair underground pipelines without the need for excavation. Our sewer repair pipeline rehabilitation systems can handle pipes that range from 2 inches up to 48 inches in diameter. Experience the Perma-Liner™ difference today and save your road, yard, slab and your sanity!
